Semi Fowler Deluxe (Manual) Bed – User Manual In Chennai

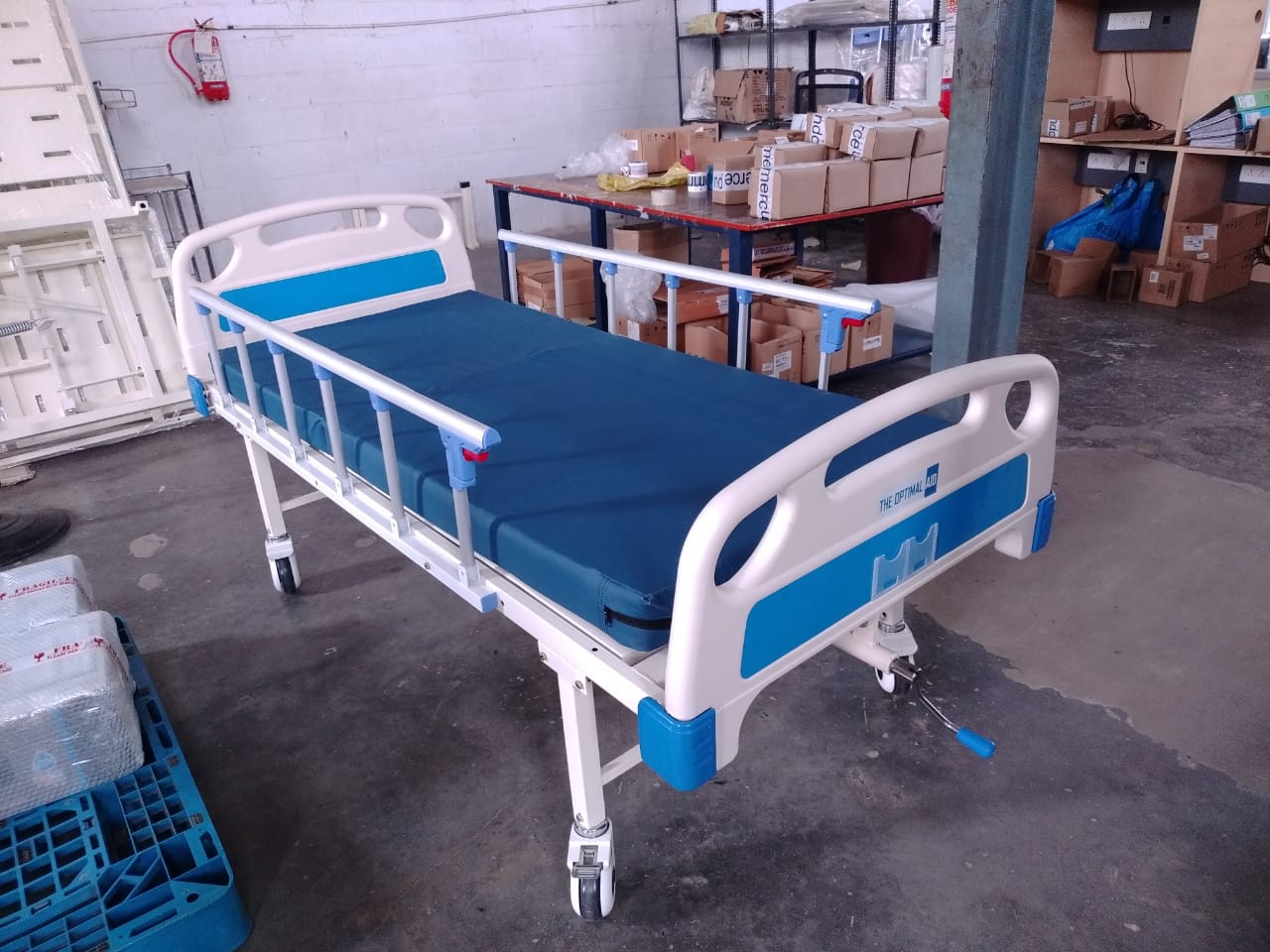

🔧 1. Main Parts

Bed frame (mild steel / CRCA sheet)

Backrest section (adjustable)

Crank handle (manual screw system)

Head & foot panels (ABS or metal)

Side railings (collapsible)

Castor wheels (with brakes)

IV rod provision

👉 These beds usually have a 2-section top with adjustable backrest

⚙️ 2. How to Operate

➤ Adjust Backrest (Semi-Fowler Position)

Locate the crank handle at the foot end.

Turn clockwise → raises the backrest.

Turn anti-clockwise → lowers the backrest.

✔ Typical angle: 30°–45° incline for patient comfort

➤ Side Railings

Lift rails upward until they lock.

To lower: press release latch and fold down.

➤ Moving the Bed

Unlock wheel brakes.

Move carefully.

Lock brakes after positioning.

🧼 3. Cleaning & Maintenance

Clean with mild disinfectant daily.

Avoid excess water on crank system.

Lubricate screw mechanism periodically.

Check bolts and joints regularly.

⚠️ 4. Safety Instructions

Always lock wheels before use.

Do not exceed ~100–150 kg load capacity (varies by model)

Ensure side rails are up for weak patients.

Keep hands away from moving joints while adjusting.

📏 5. Typical Specifications

Size: ~2060–2100 mm (L) × 900 mm (W)

Height: ~600 mm

Material: Powder-coated mild steel

Operation: Manual crank system

🏥 6. Common Uses

Hospitals (general ward, ICU support)

Home patient care

Post-surgery recovery

Elderly care

📌 Note

Different brands (like Sigma or generic hospital suppliers) may include:

Optional castor wheels

IV stand

detachable panels

mattress compatibility
